Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: MEHEN
  • Model Number: M5, M10, M15, M20, M30
  • Type: ice cream, gelato
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Processing Types: Ice Cream
  • Process: Gelato, Sorbet, Sherbet, etc.
  • Processing: Freezer
  • Mixture Extrude rate: Over 95%
  • Features: Two Speeds
  • Mixture Out temperature: -8 to -9 celsius degree
  • Compressor: Tecumseh from France
  • Refrigerant: R404A
  • Expansive Valve: Danfoss from Denmark
  • Certificate: CE, ETL

Packaging & Delivery

Packaging Details: Export standard wooden case. Bottom part of the machine will be fixed on a wooden base, while the four sides will be nailed by four pieces of wooden board for M10 Gelato Business Italian Ice Machine
Delivery Detail: 20 days against the deposit for M10 Gelato Business Italian Ice

Specifications

M10 Gelato Business Italian Ice Machine
1. Experienced in Overseas Service
2. 15 years experience
3. Work well in high-temp

M10 Gelato Business Italian Ice Machine


MEHEN has specialized in manufacturing Hard Ice Cream Machine for 14 years. Our Hard Ice Cream Machine can make premium  artisan gelato (ice cream) by fully automatic operation with digital Control System.



Ice Cream Batch Freezer / Hard Ice Cream Machine

Models: M5 (counter), M10, M15, M20, M30



1) Digital indicator: Shows hardness of ice cream range from 1-10

2) Hard Ice Cream Machine cylinder capacity: 5L, 10L, 15L, 20L, 30L

3) Condenser of  Hard Ice Cream Machine: Air or water

4) Power supply: 220/380 Volt, 1/3 PH, 50/60 HZ

5) Certificate: CE , ETL



Ice Cream Batch Freezer With High Standard Material & Components:

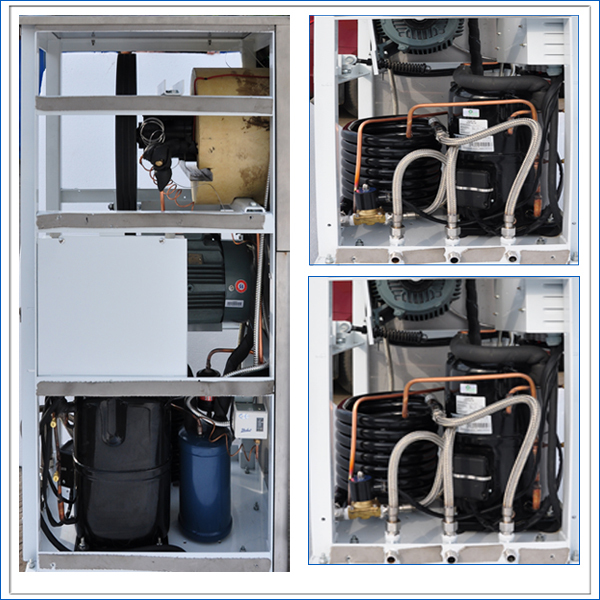

1) Compressor: Tecumseh from France or Bitzer from Germany

2) Expansion Valve: Danfoss from Denmark

3) Motor: Wan'nan Motor or Siemens Motor

4) Refrigerant: R404A

5) AISI 304 Stainless Steel



Hard Ice Cream Machine gelato batch freezer Characteristics:



1.  Hardness-control-system(HCS), 1 10 hardness parameter for any operator to make the same high-quality gelato.

2.  Patent dasher with high performance and perfect extraction rate, easy to clean and replace.

3.  Unique designed evaporator with gas finely dispersed to "Multipoint" around cylinder.

4.  Two speeds, low for Italian gelato and high for high overrun ice cream.

5.  Designed with safety devices to protect the operator and the machine from dangers.

6.  Practical built-in water hose allowing easier and faster cleaning.

7.  Automatic audible alarm signals when a process is done.























,










The Difference Of Our gelato batch freezer:



The design of our beater, which brings ice cream coming out with good texture. Without good beater, the ice cream is not hard enough, and the texture will not be smooth.

  • The efficient freezing because we are using high H.P components. A lot of suppliers mark the same size as us, but actually the power is much less. It will affect the texture of ice cream and efficiency.
  • Right speed, right beater, right scraper, right design , etc. will make sure right ice cream.
  • Components are with high standard to make sure the long time duration of machine.

Gelato Batch Freezer Technical Specifications:



Model

M5

M10

M15

M20

M30

Capacity

5 ltr

10 ltr

15 ltr

20 ltr

30 ltr

Hour Capacity

20 ltr

40 ltr

60 ltr

80 ltr

120 ltr

Batch Time

6 to 12 min

10 to 18 min

Control System

Electronic, Computer

Beater Design

Replaceable Blades

Condenser

Air -Cooling

Water -Cooling

Power Type

220v/1/50hz,60hz

380v/3/50,60hz or 220v/3/50,60hz

Construction

Welded Steel (stainless steel available with extra cost charged)

Frame Type

Counter

Floor

Outer Panel Material

Stainless Steel, AISI 304

Rinse System

No

Standard

Net Weight

239 lbs/110 kg

391 lbs/180 kg

478 lbs/220 kg

564 lbs/260kg

673 lbs /310 kg

Gross Weight

315 lbs/145 kg

467 lbs/215 kg

564 lbs/260 kg

651 lbs/300kg

845 lbs/380 kg

Width

 17.7 inch/45cm

19.0 inch/48 cm

21.9 inch/55 cm

22.8 inch/58cm

27.17 inch/69cm

Depth

 31.5 inch/80cm

28.4 inch/72 cm

30.1 inch/72 cm

34.6 inch/88cm

36.2 inch/92cm

Height

 30.7 inch/78cm

51.2 inch/130 cm

52.0 inch/132 cm

55.9 inch/142cm

56.0 inch/142cm

Power

2500 w

5500 w

7100 w

9100 w

11200 w

Note: 1. The batch time may change according to cooling condition and raw material.  2.The performance of air-cooled models is referred to <25 °C environment temperature.



Note:

The voltage and the frequency can be set up according to different countries’ standard.



General Introduction:



The new model has a brand-new freezing cylinder and improved dasher results that freezing is more even on the inside surface, it can produce much harder ice cream with better texture. An industrial quality frequency control device makes the machine extremely quiet and adds years to the operating life of the machine. The easy-to-read electronic module shows the progress of the batch and has a fault diagnosing mode. More flexible operation system with Hardness-Control-System (HCS), you can change freely low or high overrun even during running, as well as the output speed as you wish during extruding progress which allows you gently art deco the ice cream. It can produce high overrun Ice Cream, Homemade Italian Gelato, Slush, Sherbet & Sorbet, Yogurt, Smoothie and Frozen Custard etc.



After-Sale Service:



We have service department which experienced in this business for 13 years. We shall give you  professional advise.  pleach click link for MEHEN Gurantee & Service:



http://www.mehen.com/profile/self/guarantee---service-terms-432c



Ice Cream Training Course:



We give ice cream training courses regularly by cooperating with famous ice cream ingredients company, contact MEHEN for application.



http://www.mehen.com/blog/?p=308



Visit: www.mehen.com  for further information
